Welcome to the beginning of the Binary Bomb lab walkthrough. I am going to give a comprehensive review of my strategy and through process when going through this challenge, but I am going to refrain from walking through every individual instruction.

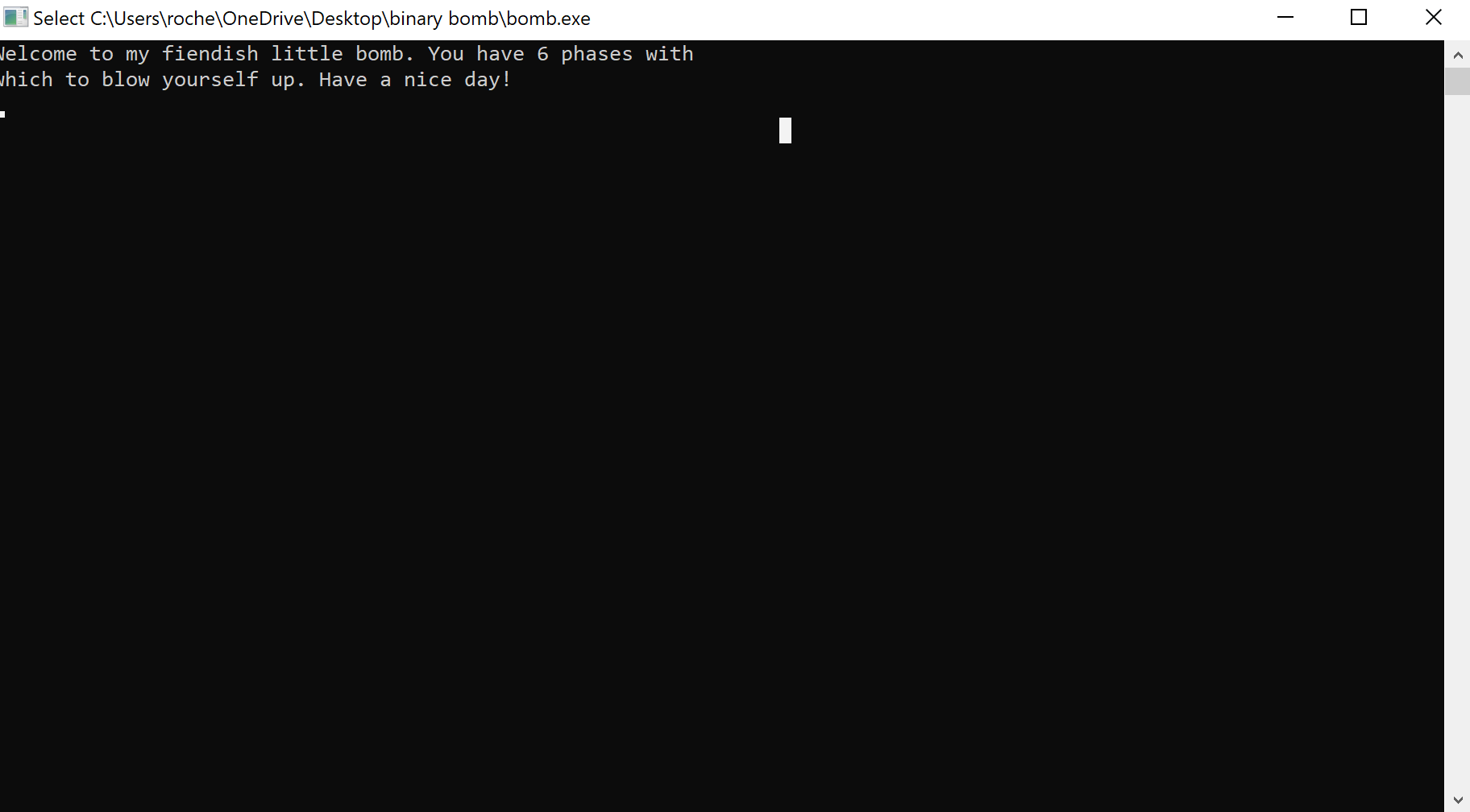

When we run the binary bomb program, we are met with a message: “Welcome to my fiendish little bomb. You have 6 phases with which to blow yourself up. Have a nice day!” initial_run initial execution

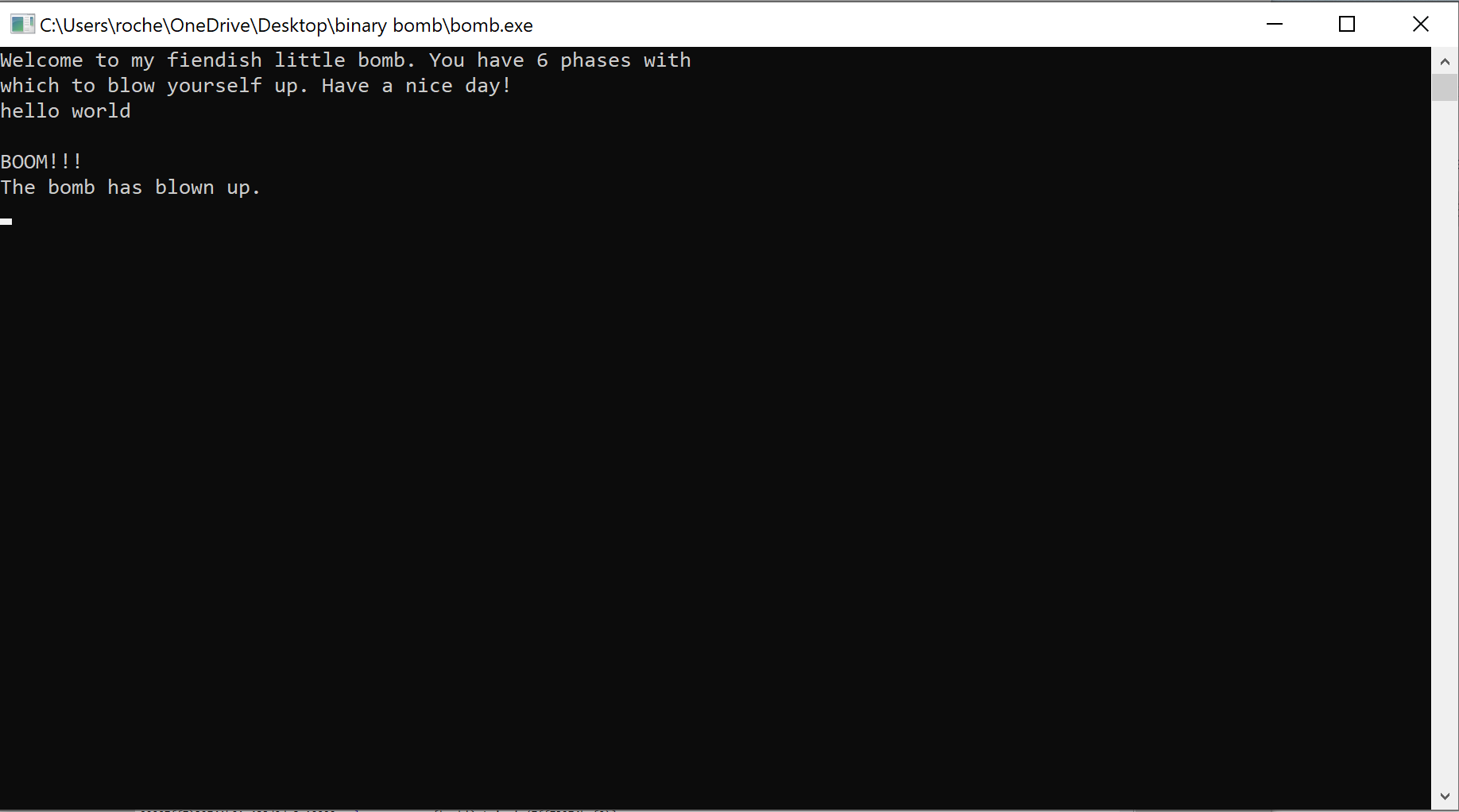

Well, let’s give it some input and see what happens. hello_world boom

Our binary bomb has exploded. We need to investigate this and see what it is they want from us. Let’s do some dynamic analysis using WinDbg and take a look at the main function.

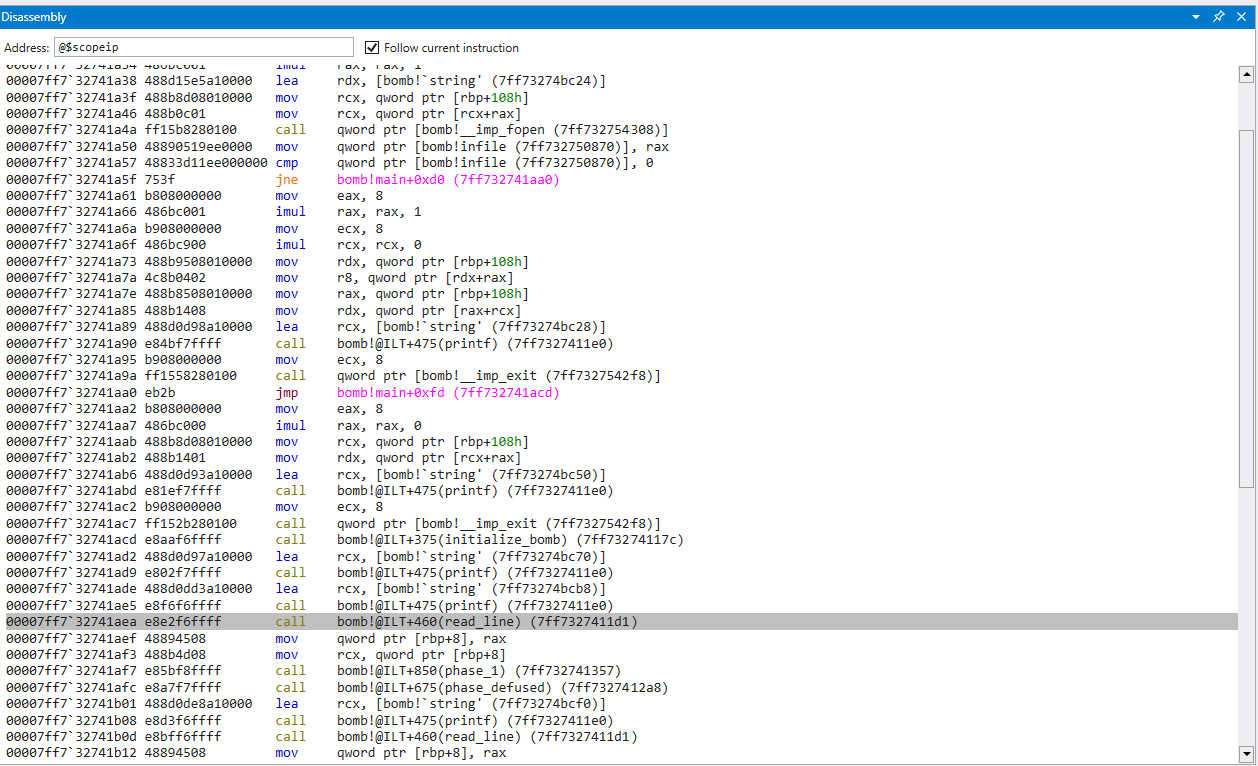

main_area

Initially this is alot to digest, but we can start to take step through the code while it executes to get an idea of what is happening. We see a few ’lea’ instructions that seem to load our initial message pointers into registers, followed by a few calls to printf(). We can safely assume these are printing the welcome message we see. There is a call to read_line() which most likely taking the input we give. We also see a call to phase_1() followed by a call to phase_defused(). These two functions are of interest to us. Let’s take a closer look at phase_1()

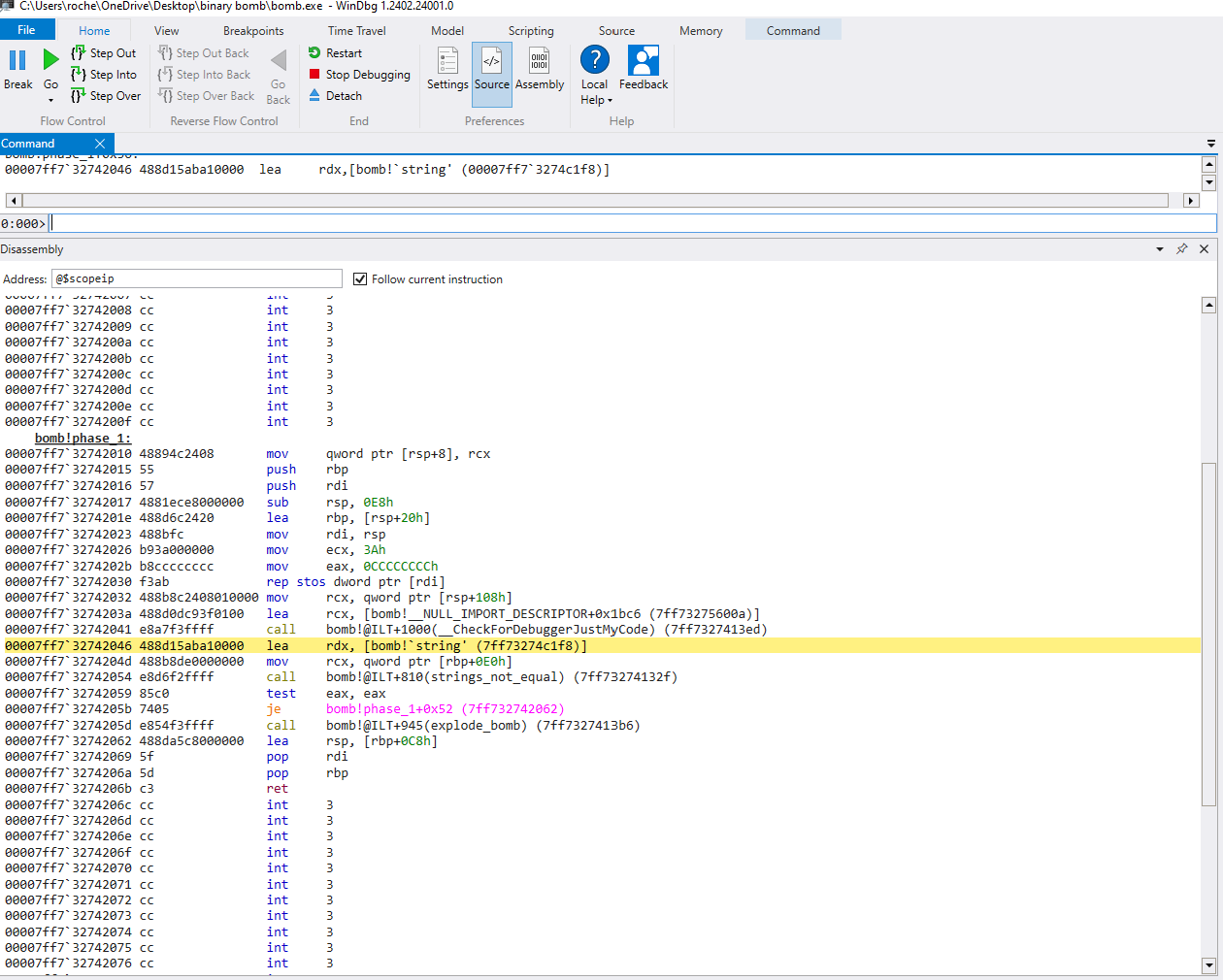

phase_1 phase 1 asm

Thankfully, this seems to be a pretty small function. We see some initial stack setup code (alignment, storing callee-store registers, etc) along with a few function calls

  • strings_not_equal()
  • explode_bomb()

We’re gonna go out on a limb and guess that strings_not_equal() takes in two strings, compares each byte, and returns if they are equal. This function is followed by a test eax, eax which performs a bitwise ‘&’ operation on the register. The result is then used in je ... , which ultimately checks if the zero flag is set. If this flag is not set, the jump is not taken and the bomb explodes.

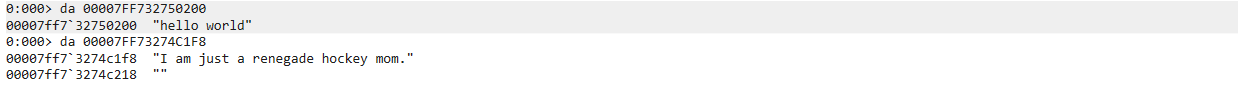

We can clearly see a lea rdx, 7ff73274c1f8, followed by a mov rcx, qword ptr[rbp+0E0h]. RCX and RDX are used for passing parameters in Windows compiler, so this is most likely our input and the expected string being loaded into memory. Let’s take a look at these two memory locations and see if this is correct memory_strings

There is the answer to phase_1 in plain text :0

“I am just a renegade hockey mom.” seems to be like the input phase 1 is expecting. Let’s give it a go

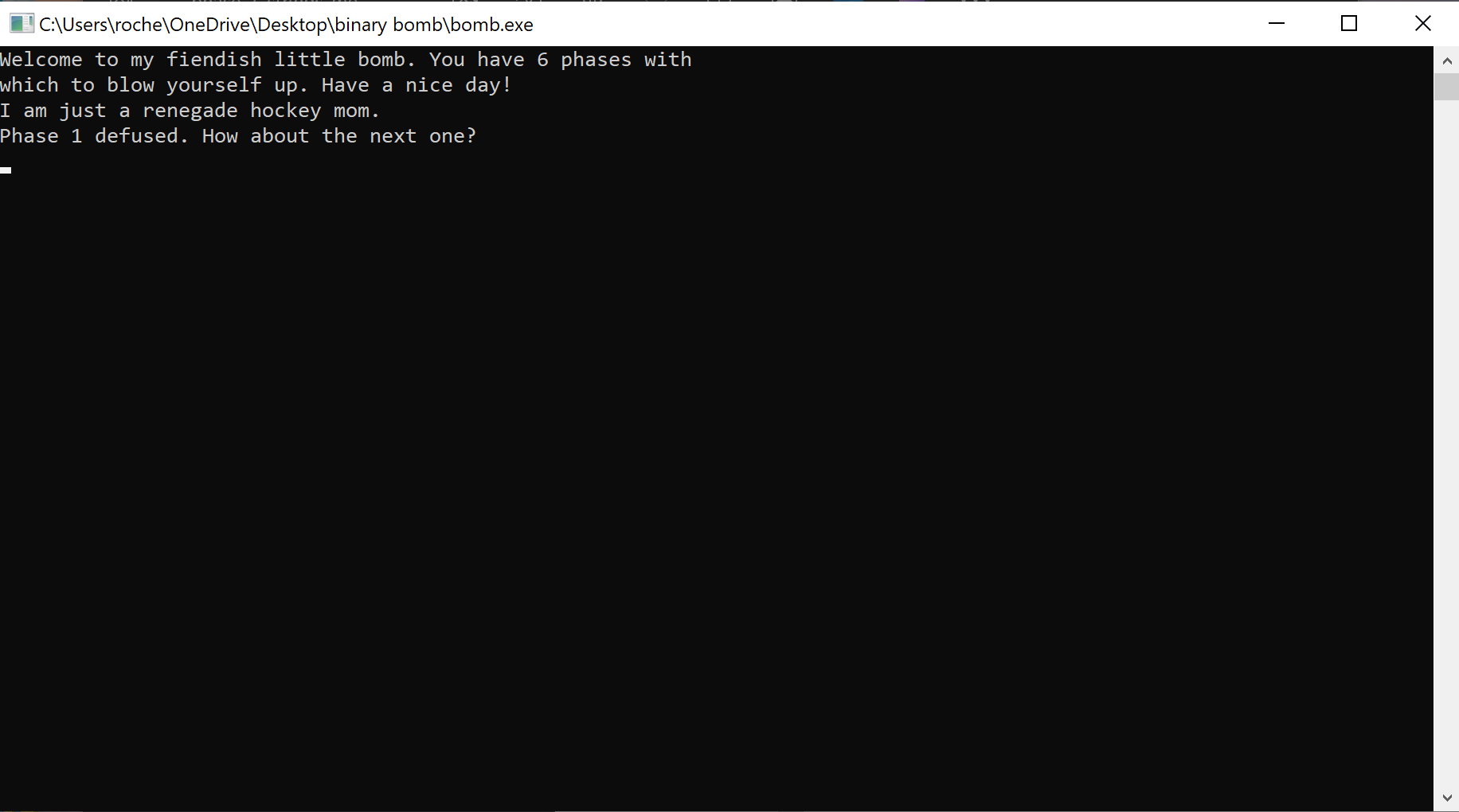

defused phase 1 defused

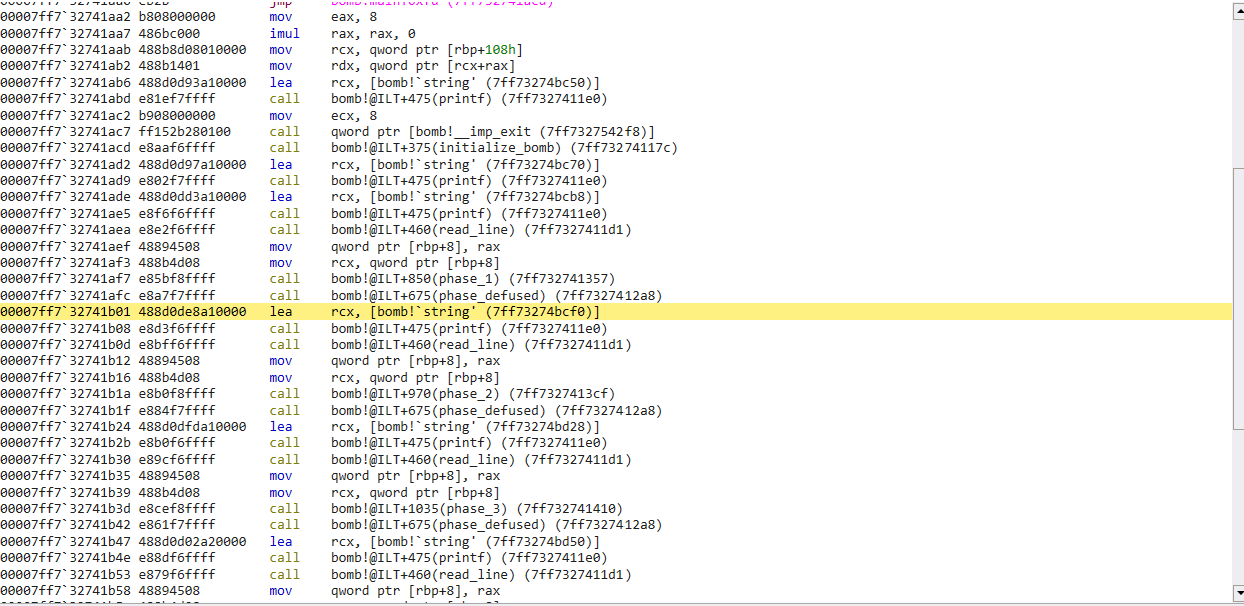

We can also see where we are in our main() function after successfully passing phase 1

passed

On to phase 2!
